Operateur type 500

The type 500 operator is constructed by doubling the mechanism and cylinders of the type 400 operator. The housing includes a second symmetrical rack-and-pinion box, and the sector has been replaced with a wheel. The characteristics and specifications are identical to those of the type 400.

Manual operation can be configured upon request with two Transroll screw reducers requiring two people for manual operation, capable of a maximum torque of 7,000 m.kg, or with a hydraulic control using a high-pressure pump and cylinder.

Definitions

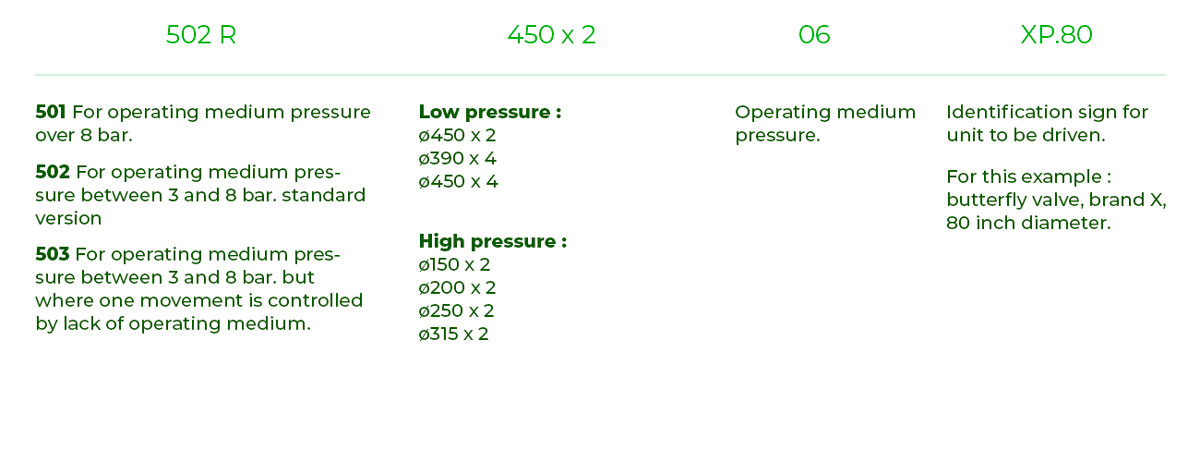

There are several models for this type of operator. Each is defined by a four-digit symbol:

For example :
